Density: 7.98 g/cm³
Outer diameter: 6.35 to 1219mm,1/4"-48"
Wall Thickness: 0.1 to 60mm,sch5s-sch160
Length: 1-12m
Surface: black,pickling,hairline,180 and 240 grits,6K,8K.
Packing: Woven bag,wooden box or as required
Standard: ASTM A213 (ASME SA213), ASTM A249 (ASME SA249),ASTM A269 (ASME SA269),ASTM A312 (ASME SA312),ASTM A511 (ASME SA511),ASTM A554 (ASME SA554), JIS, BS, EN, DIN etc
309 is a high temperature resistant chrome-nickel austenitic stainless steel that is resistant to oxidation at elevated temperatures in dry air at temperatures up to 1900 ̊F. This grade can be resistant to oxidation at temperatures of about 1850 °F under thermal cycling conditions. Type 309 has good resistance to sulphide, but has low carburization resistance and should not be used in highly carburized atmospheres.
309s is a variant of 309 stainless steel with a lower carbon content for applications where welding is required. The lower carbon content minimizes the precipitation of carbides in the heat affected zone near the weld, which may result in intergranular corrosion (weld erosion) in certain environments. It can withstand repeated heating below 980 °C, with high temperature strength and oxidation resistance.
309H (UNS S30909) is a high carbon modification developed for enhanced creep resistance.
Manufacturing process for 309s/309h stainlesss steel seamless pipe：
Round tube billet → heating → perforation → head → annealing → pickling → oiling (copper plating) → multi-pass cold drawing (cold rolling) → blank tube → heat treatment → straightening → hydraulic test (inspection) → mark → in Library.
Mechanical properties:
Tensile strength (бb) (Mpa): ≥ 515
Yield strength (σs) (Mpa): ≥ 205
| HS Code | 7304419000 |
| Standard | ASTM, ASME, DIN, EN, ISO,JIS, GOST, etc. |
| Marking | Grade+Type+Standard+Size+Heat NO or as required |
| Price Term | EX-Work, FOB, CFR, CIF,CNF |
| OEM | Accepted |
| Payment term | T/T,L/C, Western union |
| Certificate | ISO 9001, PED |
| Third party inspection | Accepted |
| Grade | UNS | Chemical Component % | |||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | ||
| TP309S | S30908 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 12.0-15.0 | 22.0-24.0 | 0.75 |
| TP309H | S30909 | 0.04~0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 12.0-15.0 | 22.0-24.0 | - |

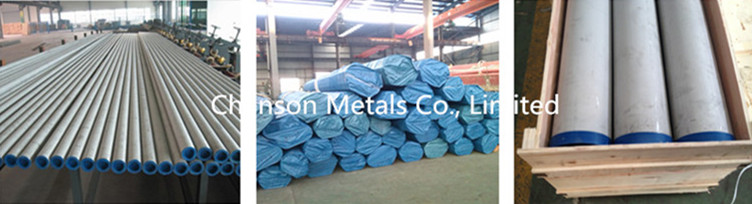

Packing for stainless steel pipe:
With tube cap in woven bag or wooden box

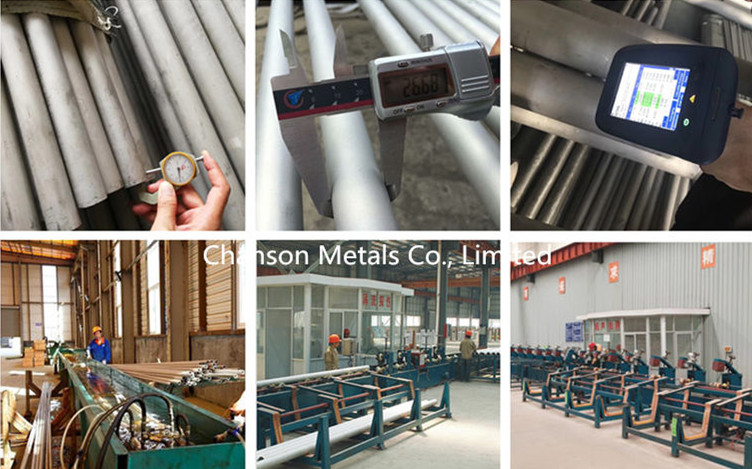

All the material would be tested before shipping:
1. Measurement test
2. Chemical composition test
3. Ultrasonic test
4. Eddy current testing
Available products for 309s/309h:
309 309s stainless steel seamless pipe
309 309s stainless steel sheet and plate
309 309s stainless steel coil and strip
309 309S stainless steel round bar and rod
309 309S stainless steel wire and weld wire
